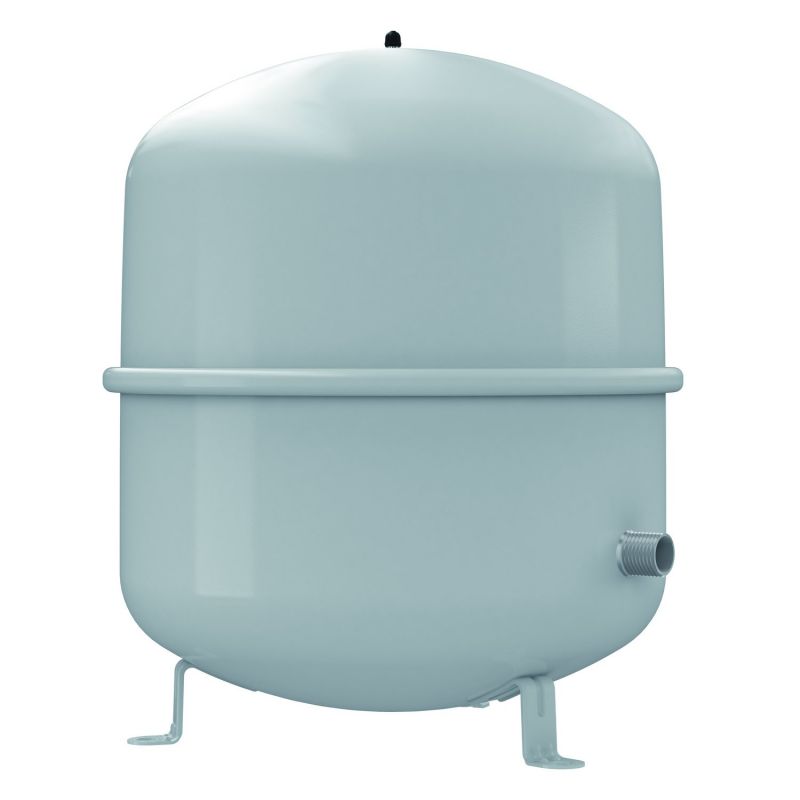

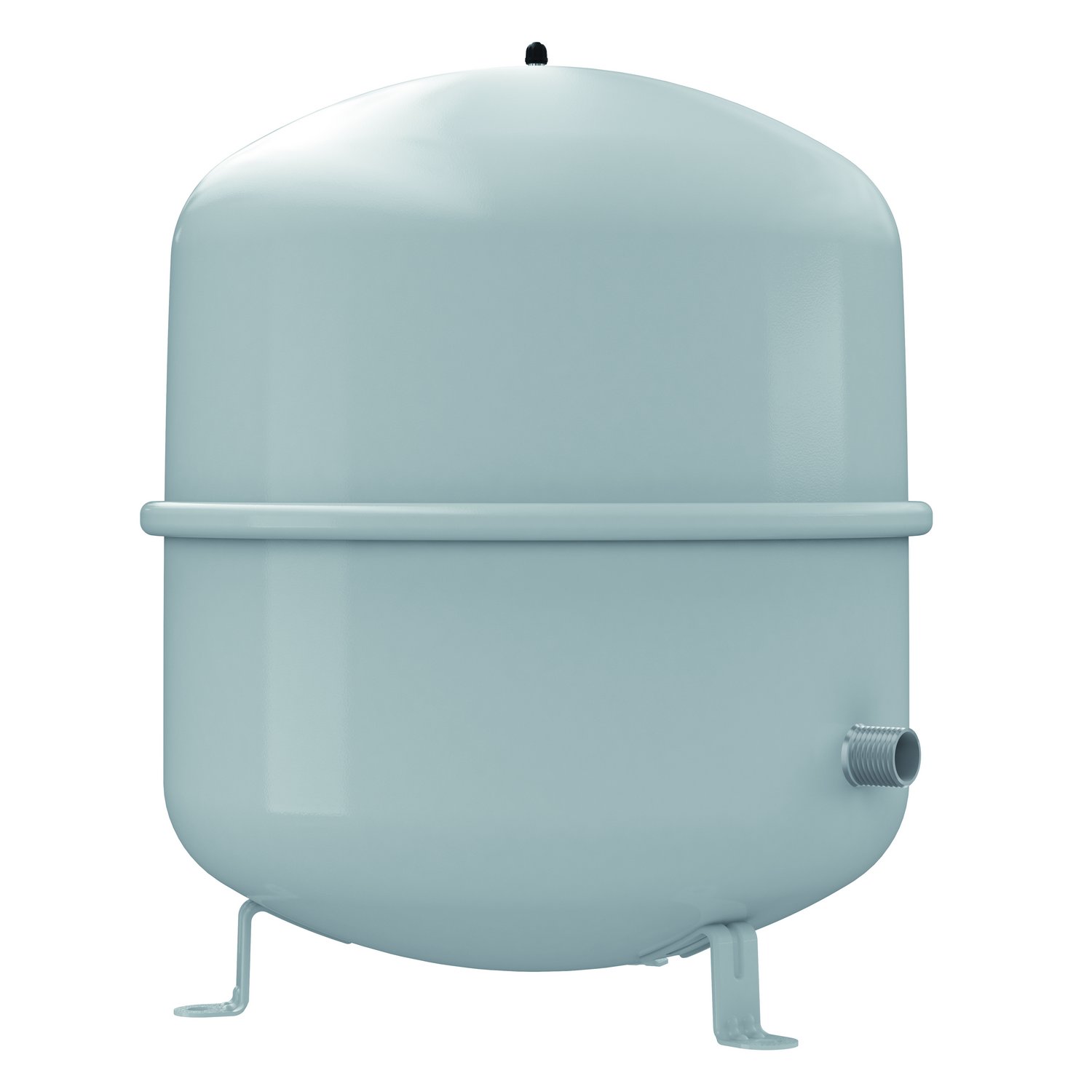

HEATING EXPANSION VESSEL 35-140 LITRES
● Test pressure: 1.5 x max working pressure
● Max flow operating temperature: 120°C
● Max vessel operating temperature: 70°C
● Factory pre-charge: 1.5 bar - nitrogen
● With feet
● Membrane: Synthetic Rubber
| Reference | Name | Connections | Max Working Pressure | Weight Dry (Kg) | Cap (L) | Dia (Ø D mm) | Ht (Ø H mm) |
|---|---|---|---|---|---|---|---|
| HV35C | Heating expansion vessel 35 - 140 litres | R ¾″ | 3 bar | 5.7 | 35 | 376 | 465 |
| HV50C | Heating expansion vessel 35 - 140 litres | R ¾″ | 6 bar | 7.5 | 50 | 441 | 495 |
| HV80C | Heating expansion vessel 35 - 140 litres | R 1″ | 6 bar | 9.9 | 80 | 512 | 570 |
| HV100C | Heating expansion vessel 35 - 140 litres | R 1″ | 6 bar | 11.2 | 100 | 512 | 680 |
| HV140C | Heating expansion vessel 35 - 140 litres | R 1″ | 6 bar | 14.5 | 140 | 512 | 895 |
Technical Downloads
- Reflex Expansion Vessel IOM
- HV C Heating Expansion Vessels 8 to 140 Data Sheet
- HV Heating Expansion Vessels 8 to 140
- HV C Heating Exp Vessel 35 to 140 Litre Submittal Data
Product Images
Click to download
HEATING EXPANSION VESSEL 35-140 LITRES FAQs
There are no product specific FAQs currently available.
Please, view our general FAQs page to find the answer to your question.

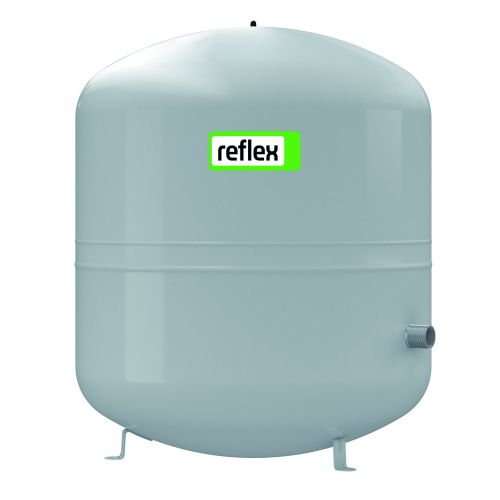

HEATING EXPANSION VESSEL 200-800 LITRES
● Test pressure: 1.5 x max working pressure
● Max flow operating temperature: 120°C
● Max vessel operating temperature: 70°C
● Factory pre-charge: 1.5 bar - nitrogen
● With feet
● 300l - 800l vessels palletised
● Membrane: Synthetic Rubber

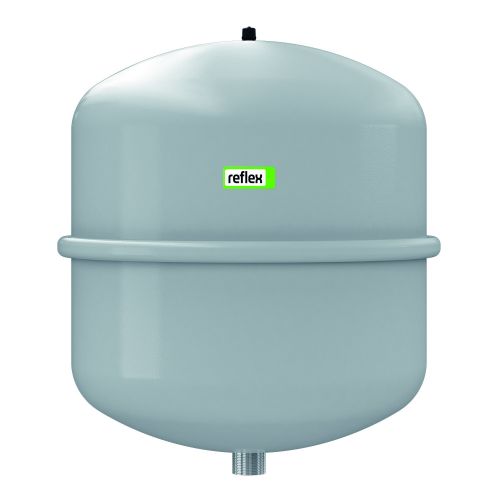

HEATING EXPANSION VESSEL 8-25 LITRES
● Test pressure: 1.5 x max working pressure
● Max flow operating temperature: 120°C
● Max vessel operating temperature: 70°C
● Factory pre-charge: 1.5 bar - nitrogen
● Membrane: Synthetic Rubber
