Heat Networks
-
Industry Expertise
Our Specification Team is home to a number of the industries most experienced minds. -
Heat Interface Units
Altecnic SmartSat electronic heat interface units (HIU) are the UK's most efficient HIU, form a volume producer, offering a number of market-leading features including floor drying setting, integral pre-payment and digital commissioning.
-
Efficient, Reliable, Compact
The Altecnic Heat Network range provides a reliable and efficient way of producing hot water.
-

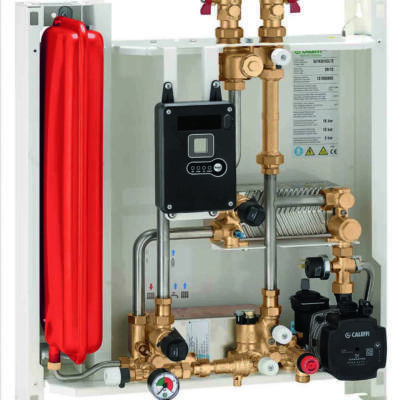

SATK30 INDIRECT HEAT INTERFACE UNIT
The SATK30 heat interface unit is the latest ‘intelligent’ range of HIU from Altecnic, offering the complete solution for instantaneous hot water production and space heating control.
The twin plate design hydraulically separates both domestic and space heating from the central primary supply, while the internal electronic control unit ensures maximum efficiency and
control.Specifications:
- Electronic control
- Up to 50 or 75kW DHW output
- Up to 15 kW heating output
- Radiator or UFH temperatures
Find the full list of technical specifications for this heat interface unit in the data sheet linked under Technical Downloads below, as well as Installation, Operation & Maintenance instructions
-

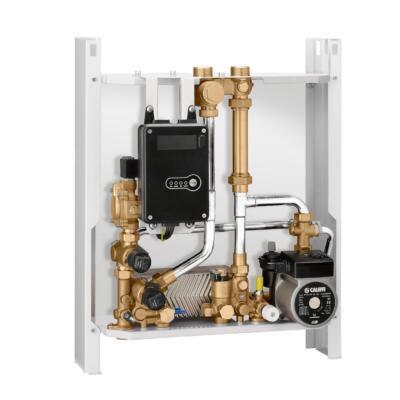

SATK20 DIRECT
● Electronic control
● Up to 50 kW DHW output
● Up to 15 kW heating output
● Modulating or fixed heating flow temperatures
● Suitable for UFH without additional mixing circuit (SATK20103)
● Low, medium and high temperature models available
● Includes pump bypass in case of complete TRV shutdown
● Optional heating pump
● Lockable, insulated cover with meter window. Metal, powder coated insulated cover also available
● Stainless steel pipework
● Integral heating circuit DPCV
● Dimensions (H x W x D) 550 x 450 x 265mm -

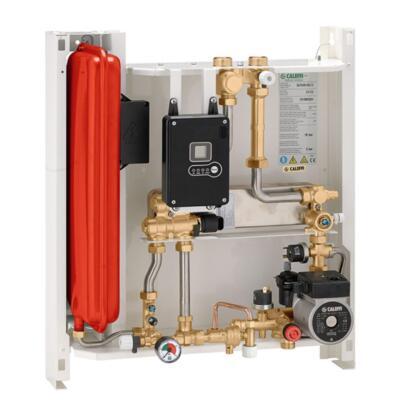

SATK40 INDIRECT
● Electronically controlled heat interface unit
● Indirect heating, up to 15kW
● Suitable for connection to an indirect hot water cylinder
● Up to 50kW DHW capacity (configurable -

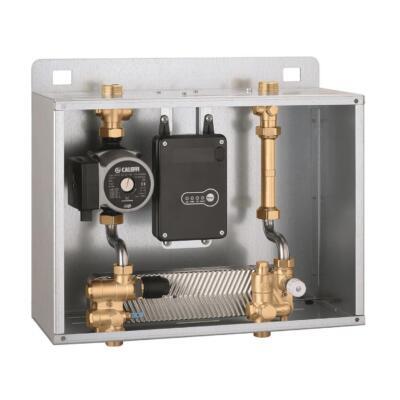

SATK102
● Wall-mounted
● Electronic control
● Up to 40 / 70 / 80 kW DHW output
● Optional primary support pump
● 2-way primary modulating valve
● Settable DHW temperature
● Includes cover
● Can be grouped for higher DHW outputs, using the cascade controller
● Dimensions (H x W x D) 330 x 420 x 235mm
Helpful articles about Heat Networks
-
Altecnic Ltd, the UK’s leading supplier of hydronic solutions and part of the Caleffi Group, has refreshed its latest CIBSE-approved Continuing Professional Development (CPD) course, “Drivers for Change and Understanding the BESA HIU Test Regime”, available free of charge through…
-
Even the best dirt and air separator will underperform if installed incorrectly. Following best-practice installation guidance ensures long-term efficiency and reliability. Recommended Installation Location For most systems: Install on the flow pipe As close to the boiler or heat…
-
What Is Magnetic Filtration? Magnetic filtration uses powerful internal magnets to capture ferrous debris, primarily magnetite, from HVAC and heating systems. Magnetite forms as a result of corrosion within sealed systems and is one of the leading causes of system…
