| Reference | Name | Connections | Max Working Pressure | Weight Dry (Kg) | Cap (L) | Dia (Ø D mm) | Ht (Ø H mm) |
|---|---|---|---|---|---|---|---|
| HV200W | Heating expansion vessel 200 - 800 litres | R 1″ | 6 bar | 37 | 200 | 634 | 706 |
| HV250W | Heating expansion vessel 200 - 800 litres | R 1″ | 6 bar | 45 | 250 | 634 | 890 |
| HV300W | Heating expansion vessel 200 - 800 litres | R 1″ | 6 bar | 52 | 300 | 634 | 1090 |
| HV400W | Heating expansion vessel 200 - 800 litres | R 1″ | 6 bar | 65 | 400 | 740 | 1090 |
| HV500W | Heating expansion vessel 200 - 800 litres | R 1″ | 6 bar | 79 | 500 | 740 | 1290 |
| HV600W | Heating expansion vessel 200 - 800 litres | R 1″ | 6 bar | 85 | 600 | 740 | 1530 |
| HV800W | Heating expansion vessel 200 - 800 litres | R 1″ | 6 bar | 103 | 800 | 740 | 1995 |
Product images are available for
download under Technical Downloads

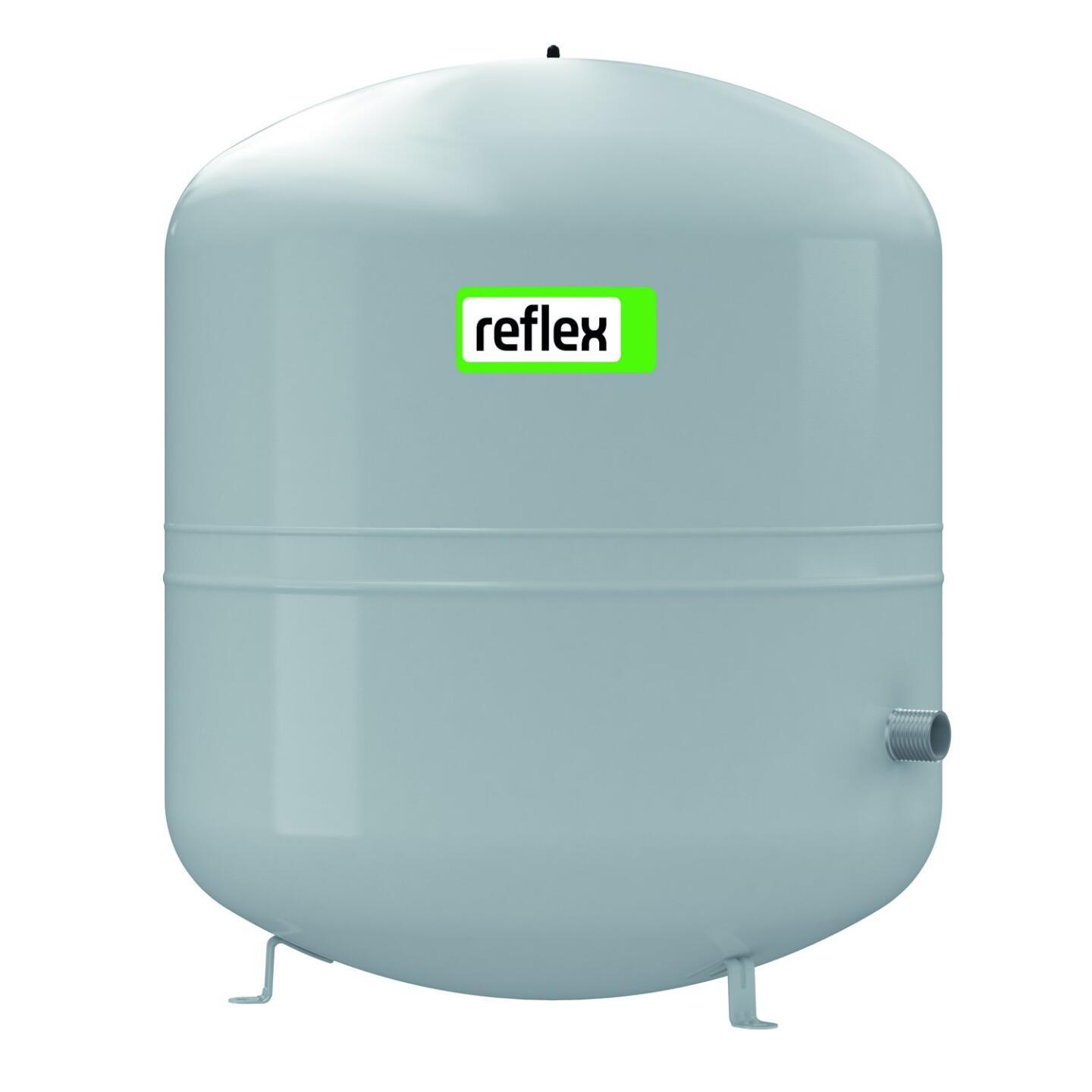

HEATING EXPANSION VESSEL 200-800 LITRES
● Test pressure: 1.5 x max working pressure
● Max flow operating temperature: 120°C
● Max vessel operating temperature: 70°C
● Factory pre-charge: 1.5 bar – nitrogen
● With feet
● 300l – 800l vessels palletised
● Membrane: Synthetic Rubber
Technical Data Sheet
Installation Operation and Maintenance Manual
Technical Submittal
- HV W Heating Exp Vessel 200 to 800 Litre Submittal Data
- HV W Heating Exp Vessel 200 to 800 Litre Submittal Data
Other Files
Product Images
Click to download
HEATING EXPANSION VESSEL 200-800 LITRES FAQs
There are no product specific FAQs currently available.
Please, view our general FAQs page to find the answer to your question.
