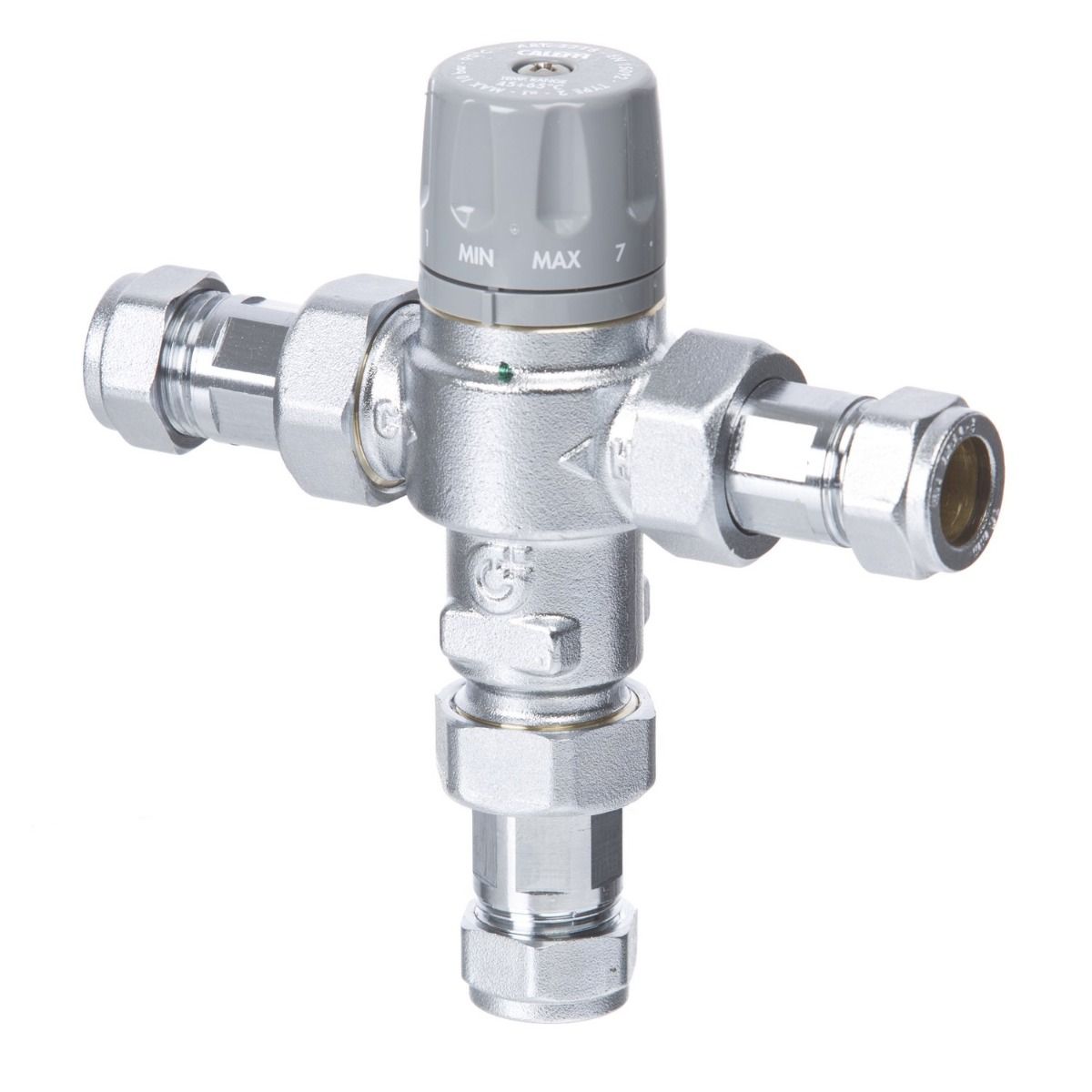

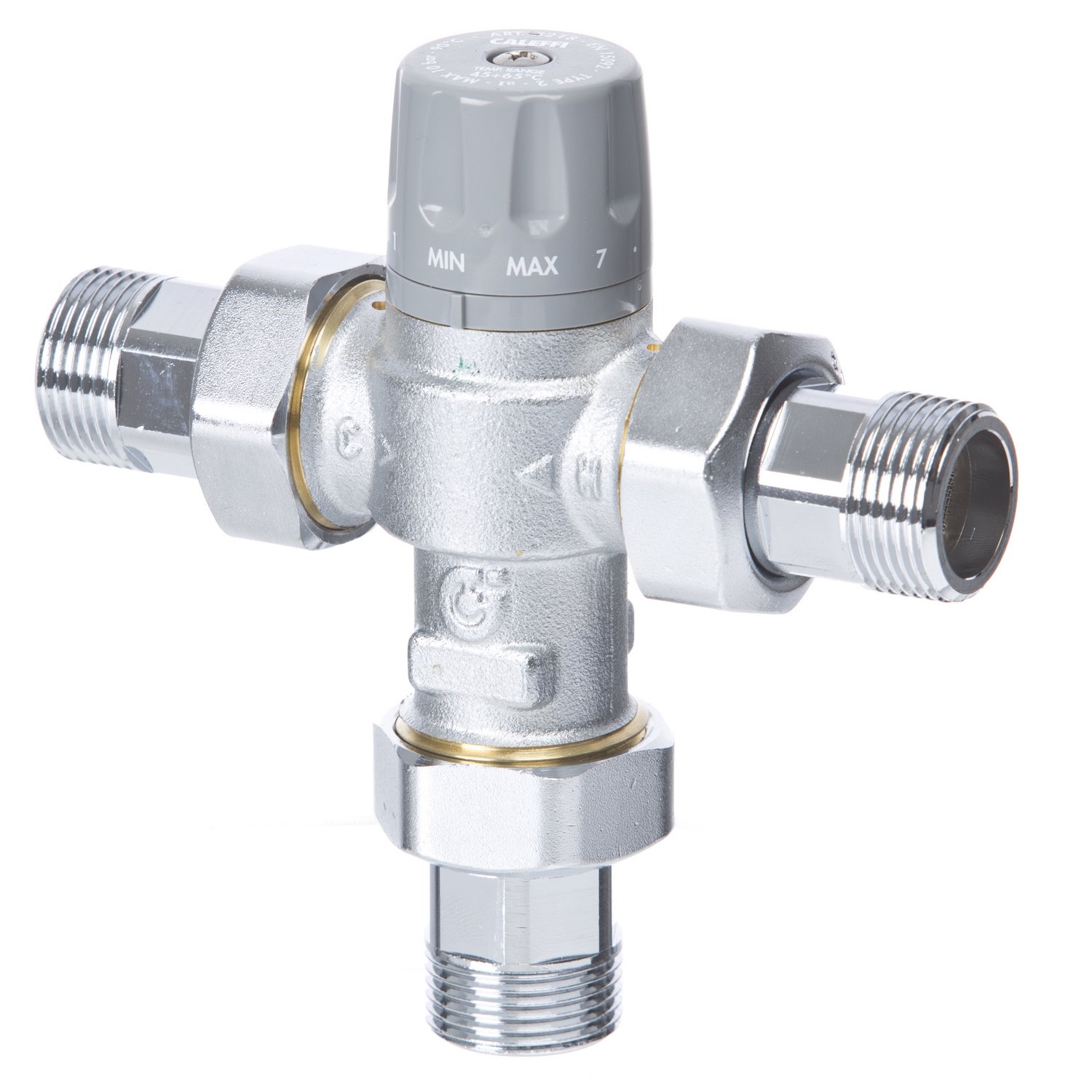

45-65° TEMPERING VALVE - SERIES 5218
A tempering valve is used in systems where the water in the storage cylinder can reach temperatures significantly above 60°C. In the event of failure of the hot or cold water supplies the tempering valve will automatically shut down in line with the BS EN 15092 test standard.
● Max pressure: 10 bar
● Max incoming temperature: 90°C
● Pressure ratio (H/C or C/H): 2:1
| Reference | Name | Size | Connections | Temperature Range | Accreditations |
|---|---|---|---|---|---|
| 521814 | 45-65° TEMPERING VALVE - SERIES 5218 | ½˝ | M BSP | Setting range 45 - 65°C |   |
| 521815 | 45-65° TEMPERING VALVE - SERIES 5218 | ¾″ | M BSP | Setting range 45 - 65°C | |
| 521816 | 45-65° TEMPERING VALVE - SERIES 5218 | 1″ | M BSP | Setting range 45 - 65°C | |
| 521817 | 45-65° TEMPERING VALVE - SERIES 5218 | 15mm | Compression | Setting range 45 - 65°C | |
| 521818 | 45-65° TEMPERING VALVE - SERIES 5218 | 22mm | Compression | Setting range 45 - 65°C | |
| 521819 | 45-65° TEMPERING VALVE - SERIES 5218 | 28mm | Compression | Setting range 45 - 65°C |
Technical Downloads
- 5218 DTC Tempering Valve IOM
- 5218 Tempering Mixing Valve Data Sheet
- 5218 Tempering Valve Submittal Data
