| Reference | Name | Size | Connections | Insulation | Orientation | Body |
|---|---|---|---|---|---|---|
| 546052 | DISCAL® dirt and air separator (flanged, including insulation) | DN50 | Flanged PN16 | Yes | Horizontal | Epoxy resin coated steel |
| 546062 | DISCAL® dirt and air separator (flanged, including insulation) | DN65 | Flanged PN16 | Yes | Horizontal | Epoxy resin coated steel |
| 546082 | DISCAL® dirt and air separator (flanged, including insulation) | DN80 | Flanged PN16 | Yes | Horizontal | Epoxy resin coated steel |
| 546102 | DISCAL® dirt and air separator (flanged, including insulation) | DN100 | Flanged PN16 | Yes | Horizontal | Epoxy resin coated steel |
| 546122 | DISCAL® dirt and air separator (flanged, including insulation) | DN125 | Flanged PN16 | Yes | Horizontal | Epoxy resin coated steel |
| 546152 | DISCAL® dirt and air separator (flanged, including insulation) | DN150 | Flanged PN16 | Yes | Horizontal | Epoxy resin coated steel |
| 546053 | DISCAL® dirt and air separator (welded socket, including insulation) | DN50 | Welded socket PN10 | Yes | Horizontal | Epoxy resin coated steel |
| 546063 | DISCAL® dirt and air separator (welded socket, including insulation) | DN65 | Welded socket PN10 | Yes | Horizontal | Epoxy resin coated steel |
| 546083 | DISCAL® dirt and air separator (welded socket, including insulation) | DN80 | Welded socket PN10 | Yes | Horizontal | Epoxy resin coated steel |
| 546103 | DISCAL® dirt and air separator (welded socket, including insulation) | DN100 | Welded socket PN10 | Yes | Horizontal | Epoxy resin coated steel |
| 546123 | DISCAL® dirt and air separator (welded socket, including insulation) | DN125 | Welded socket PN10 | Yes | Horizontal | Epoxy resin coated steel |
| 546153 | DISCAL® dirt and air separator (welded socket, including insulation) | DN150 | Welded socket PN10 | Yes | Horizontal | Epoxy resin coated steel |
Product images are available for
download under Technical Downloads

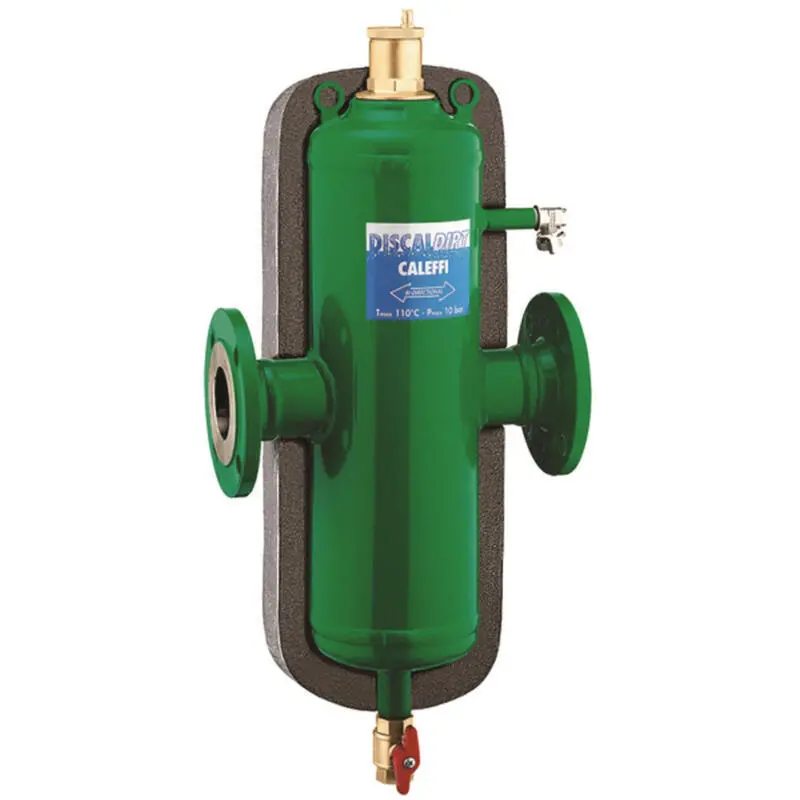

DISCAL DIRT AND AIR SEPARATORS (WITH INSULATION)
The DISCALDIRT range of dirt and air separators are designed for use on heating and
air conditioning systems to provide an efficient method of dirt and air removal.
● Range of dirt and air separators for use in commercial applications
● Max working pressure: 10 bar
● Max discharge pressure: 10 bar
● Temperature range: 0 - 110°C
● Max percentage of glycol: 50%
Technical Data Sheet
Installation Operation and Maintenance Manual
Product Images
Click to download
DISCAL DIRT AND AIR SEPARATORS (WITH INSULATION) FAQs
There are no product specific FAQs currently available.
Please, view our general FAQs page to find the answer to your question.
