Heat Pump Components

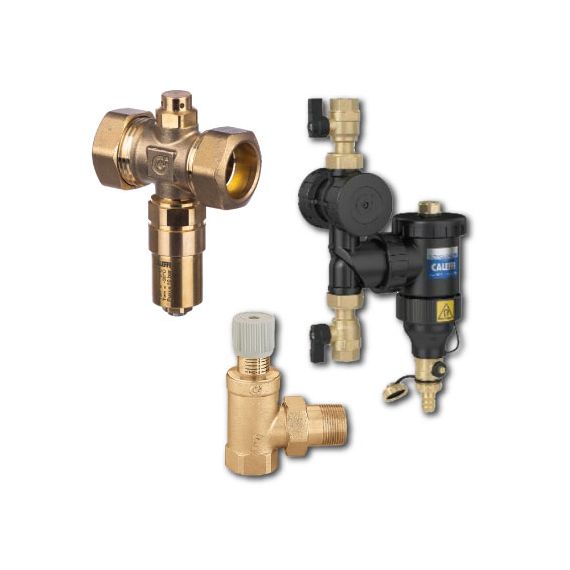

The pack consists of:

2 x iStop® Anti-freeze Valves

The antifreeze valve allows the circuit medium to be drained when its temperature reaches an average value of 3 °C. This prevents ice from forming in the circuit of a system, generally with a heat pump, avoiding potential damage to the machine and to the pipes.

1 x High Flow Bi Pass

The differential by-pass valve is used in systems working with variable flow rates, for example in those making widespread use of thermostatic valves or 2-way motorised valves. It ensures a flow recirculation proportional to the number of valves being closed while limiting the maximum differential pressure value generated by the pump.

1 x 28mm Dirtmag Plus

Dirtmag Quattro Multifunction device with dirt separator and strainer, including compression, ends. The presence of these two components allows for continuous protection of the generator and devices from any impurities that form in the hydraulic circuit both at the time of system start-up and in normal operating conditions.

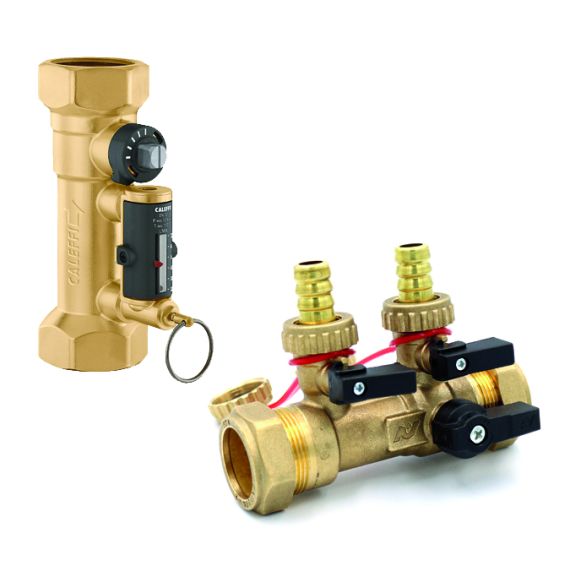

● 1 x 28mm Flush & Fill Valve (124-1502) - See page 64 for product specification
● 1 x 1” Flow Meter (132602) - See page 64 for product specification

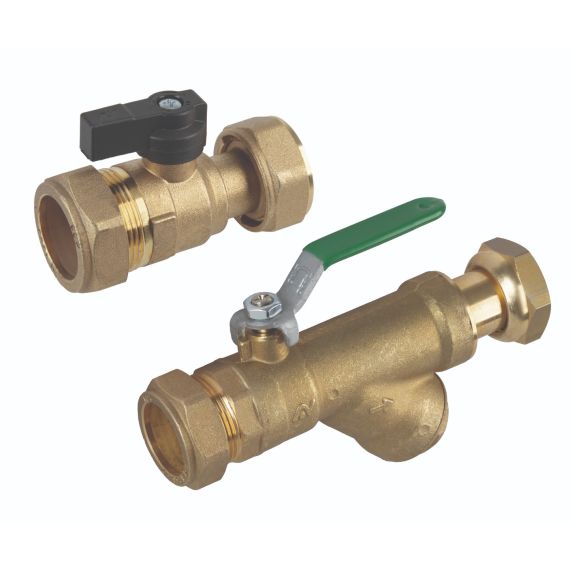

• 1 x 28mm x 1” Swivel Filter Isolation Valve (AI 0396A062815CR)
• 1 x 28mm x 1” Swivel Isolation Valve (AI 04620062807)

● Max working pressure: 10 bar
● Working temperature: -10°C - 110°C
● Manufactured according to the Directive PED 2014/68UE
