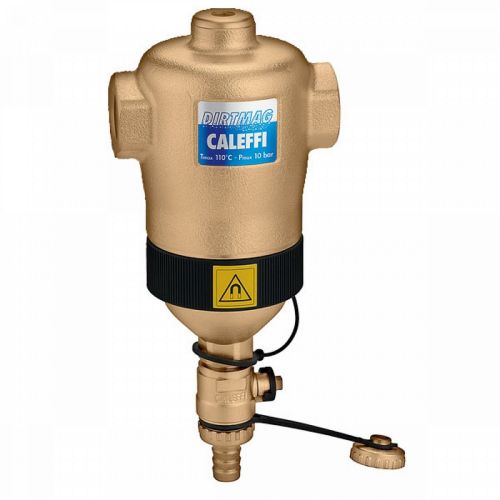

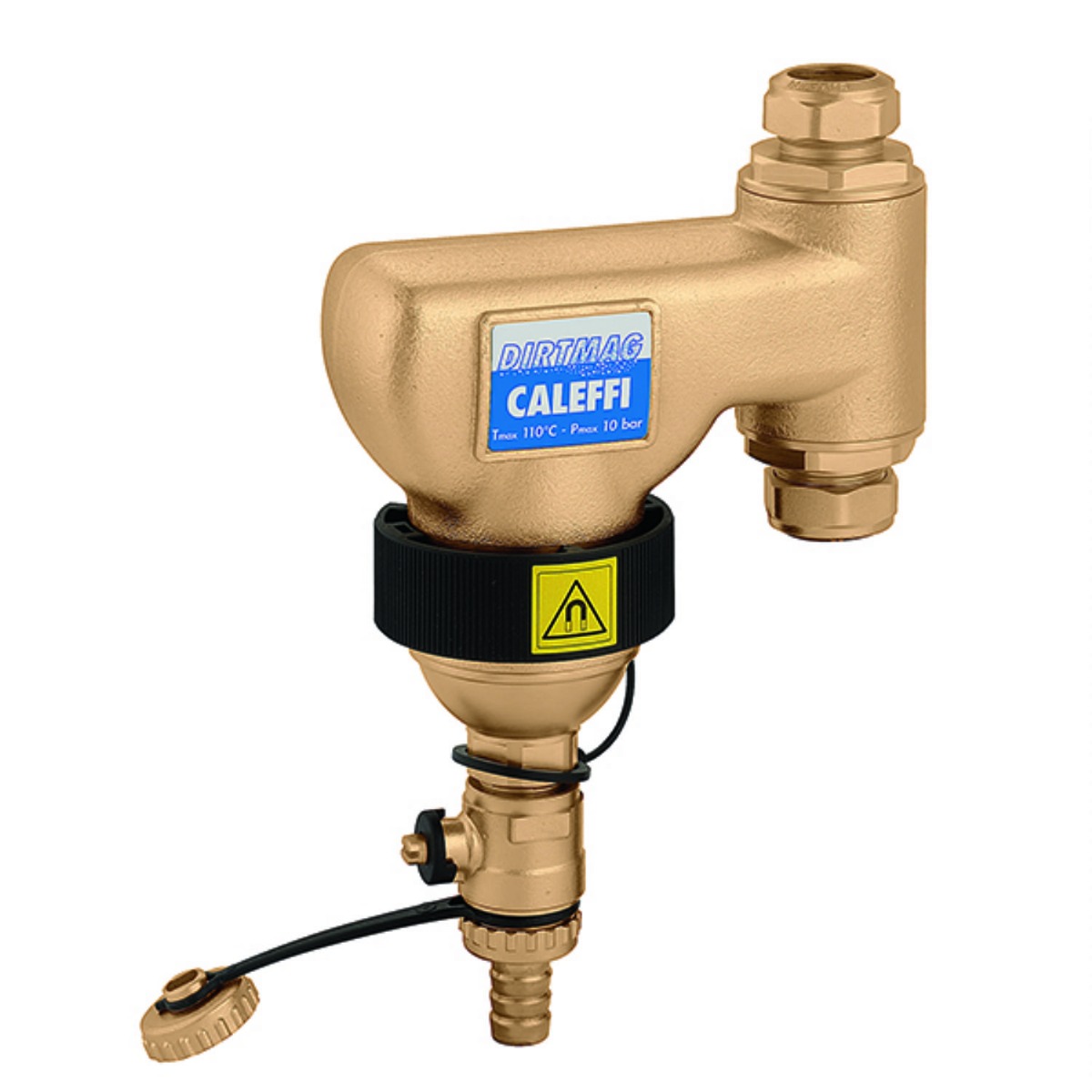

DIRTMAG® (VERTICAL)

● Pack B - Content as Pack A including Dirtmag iQ™ Prime, Cleaner and Inhibitor plus:

● Fully WRAS-approved and Part L Building Regulations-compliant filling loop with metal handles and two blanking caps.

● Pack C - Content as Pack A including Dirtmag iQ™ Prime, Cleaner and Inhibitor plus:

● Fully WRAS approved 15mm electrolytic scale reducer for Part L compliance where water hardness exceeds 200ppm.

● Pack D - Content as Pack A including Dirtmag iQ™ Prime, Cleaner and Inhibitor plus:

● Fully WRAS approved system filling loop with metal handles and two blanking caps

● 15mm WRAS approved electrolytic scale reducer ensures ultimate protection and compliance to Part L where water hardness exceeds 200ppm.

● Medium: water glycol solution
● Maximum percentage of glycol: 30%
● Max working pressure: 3 bar
● Temperature range: 0 - 90°C
● Particle separation rating down to 5µm

● Medium: water glycol solution
● Max percentage of glycol: 50%
● Max working pressure: 10 bar
● Temperature range: 0 - 110°C
● Particle separation rating down to 5µm

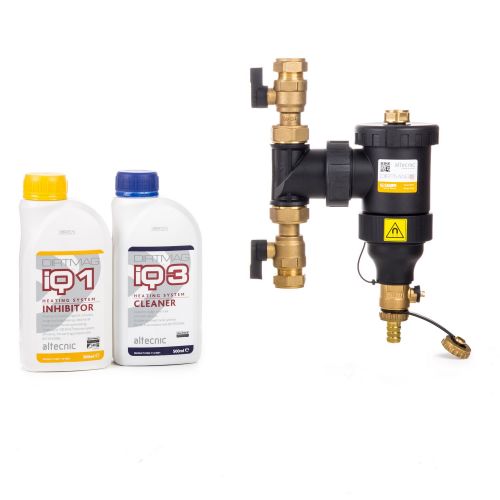

● Pack A - Dirtmag iQ™ Prime magnetic filter, iQ3 500ml Benchmark approved system cleaner, iQ1 500ml Benchmark and Buildcert approved system inhibitor for treating systems up to 100 litre (approx. 10 radiators).

● Dirtmag iQ™ Prime full bore isolation valves, full bore bottom entry discharge valve and dosing facility via a ½” air vent enables unrivalled ease of system commissioning.

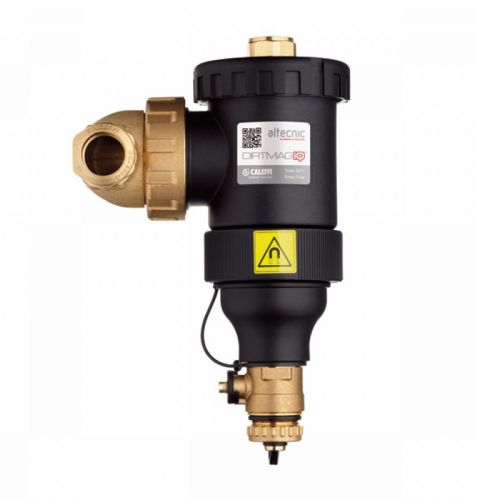

Dirtmag iQ™ Prime - offers triple separation of magnetic, nonmagnetic debris and system air releases, whilst the powerful external magnetic belt, full bore isolation valves and drain off valve enables ease of installation and fast and effective system servicing. Suitable for
horizontal or vertical applications each filter is supplied with a unique metal spanner ensuring correct and incident free installation.
