LEGIOMIX®evo-SERIES 6003
The LEGIOMIX®evo is the latest advanced electronic mixing valve from Caleffi, featuring programmable thermal disinfection and connectivity to the Caleffi Cloud.
Features include:
- Comprehensive range for application in systems with high flow rates
- Ball mixing valve
- Programmable thermal disinfection
- Connection to Caleffi Cloud for remote control
- Management in BMS setups using integrated ModBus or Bacnet
- Failsafe function in the event of electricity supply failure
- Recirculation pump management
- Three temperature probes: flow, recirculation and storage
Technical Data:
- Maximum working pressure: 10 bar
- Medium temperature range: 5–100 °C
- Adjustment temperature range: 20–85 °C
- Disinfection temperature range: 40–85 °C
- Running power consumption: (9+6) VA
- Protection class: IP 65 (actuator)
SERIES 5771 FILTERSTOP BALL VALVES
The inspectable strainer with shut-off mechanically separates the impurities contained within systems using a mesh strainer. The device also features a shut-off function to allow cleaning of the strainer element.
Heating systems application:
- Maximum working pressure: 10 bar
- Medium temperature range: 0–90 °C
- Maximum percentage of glycol: 30 %
- Medium: water, glycol solutions
Domestic water systems application:
- Maximum working pressure: 16 bar
- Medium temperature range: 5–40 °C
TAP CONNECTORS
The tap connectors have a length of braided flexible hose with a compression fitting on the system connection and a swivel connector on the other.
The 128-90S8 and 128-90S9 connectors have an integral isolating valve allowing the water supply to be isolated should the tap need to be removed or changed.
The tap connectors with a swivel connector have a retained EPDM sealing washer and do not require a fibre washer when making the joint.All tap connector are supplied as a pair.

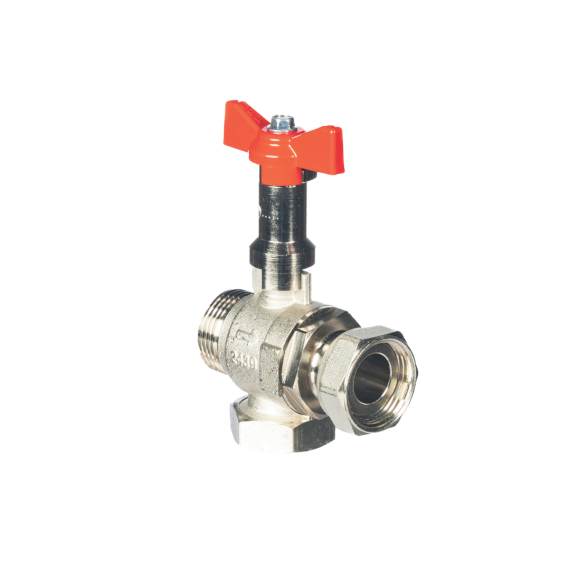

FILTER BALL VALVE WITH EXTENDED BUTTERFLY HANDLE
● Max pressure: 16 bar
● Max temperature: 100˚C
● Working temp. range: 0 - 100˚C
● Strainer mesh size: 500 μ - 0.5 mm

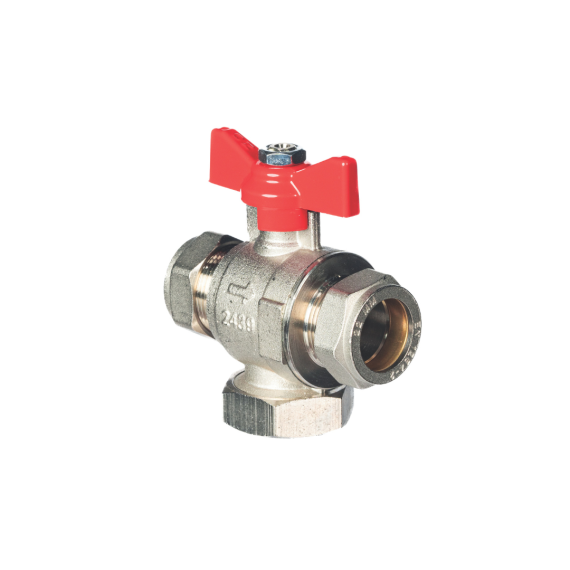

● Threaded ends: ISO 228 - 1FILTER BALL VALVE WITH BUTTERFLY HANDLE
● Max pressure: 16 bar
● Max temperature: 100˚C
● Working temp. range: 0 - 100˚C
● Strainer mesh size: 500 μ - 0.5 mm

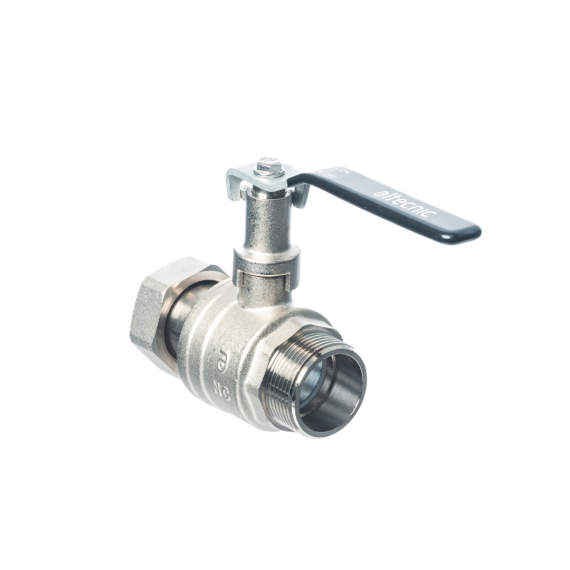

● Threaded ends: ISO 228 - 1BALL VALVE WITH EXTENDED LEVER HANDLE
● Max temperature: 140˚C
● Working temp. range: -20 - 100˚C
● Strainer mesh size: 500 μ - 0.5 mm
● Threaded ends: ISO 228 - 1
