| Reference | Name | Accreditations |
|---|---|---|
| 539050H | ยพห x 1ห Altecnic Apartment Control Assembly |   |
| 133-5001 | Altecnic Apartment Control Assembly c/w Cold Water Meter | |
| 133-5002 | Altecnic Apartment Control Assembly c/w Hot Water Meter | |
| 133-5011 | Altecnic Apartment Control Assembly c/w Cold Water Meter MBUS | |
| 133-5012 | Altecnic Apartment Control Assembly c/w Hot Water Meter MBUS | |
| 133-5021 | Altecnic Apartment Control Assembly c/w Class D Water Meter | |
| 133-5031 | ยพห x 1ห Altecnic Apartment Control Assembly complete with insulation and pressure gauge | |
| CBN539050 | Insulation for Altecnic Apartment Control Assembly | |
| 206-5001 | Cyble m-bus with 5m lead | |

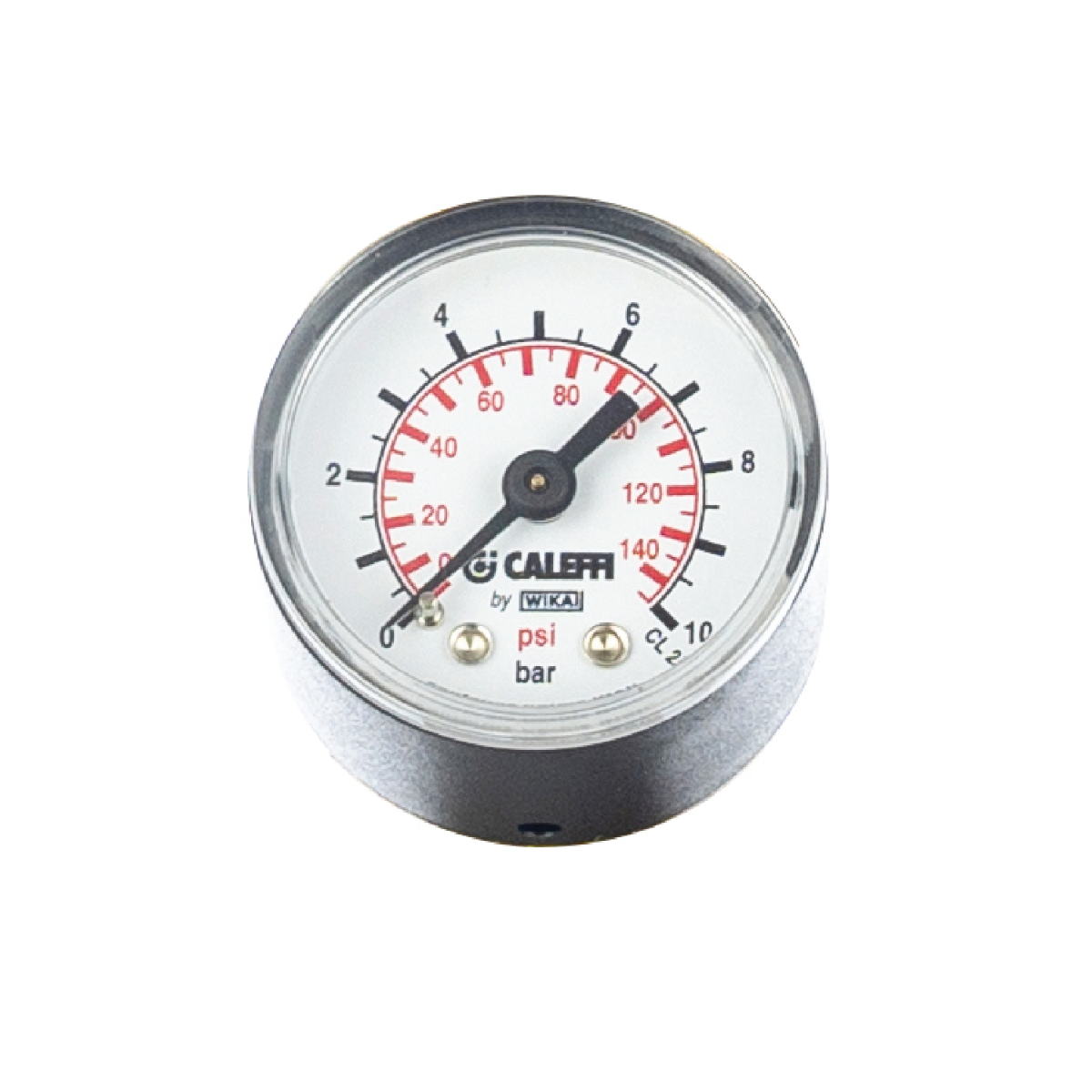

| 557010 | Pressure gauge 0-10 1/4 back 40mm dial | |
Product images are available for
download under Technical Downloads

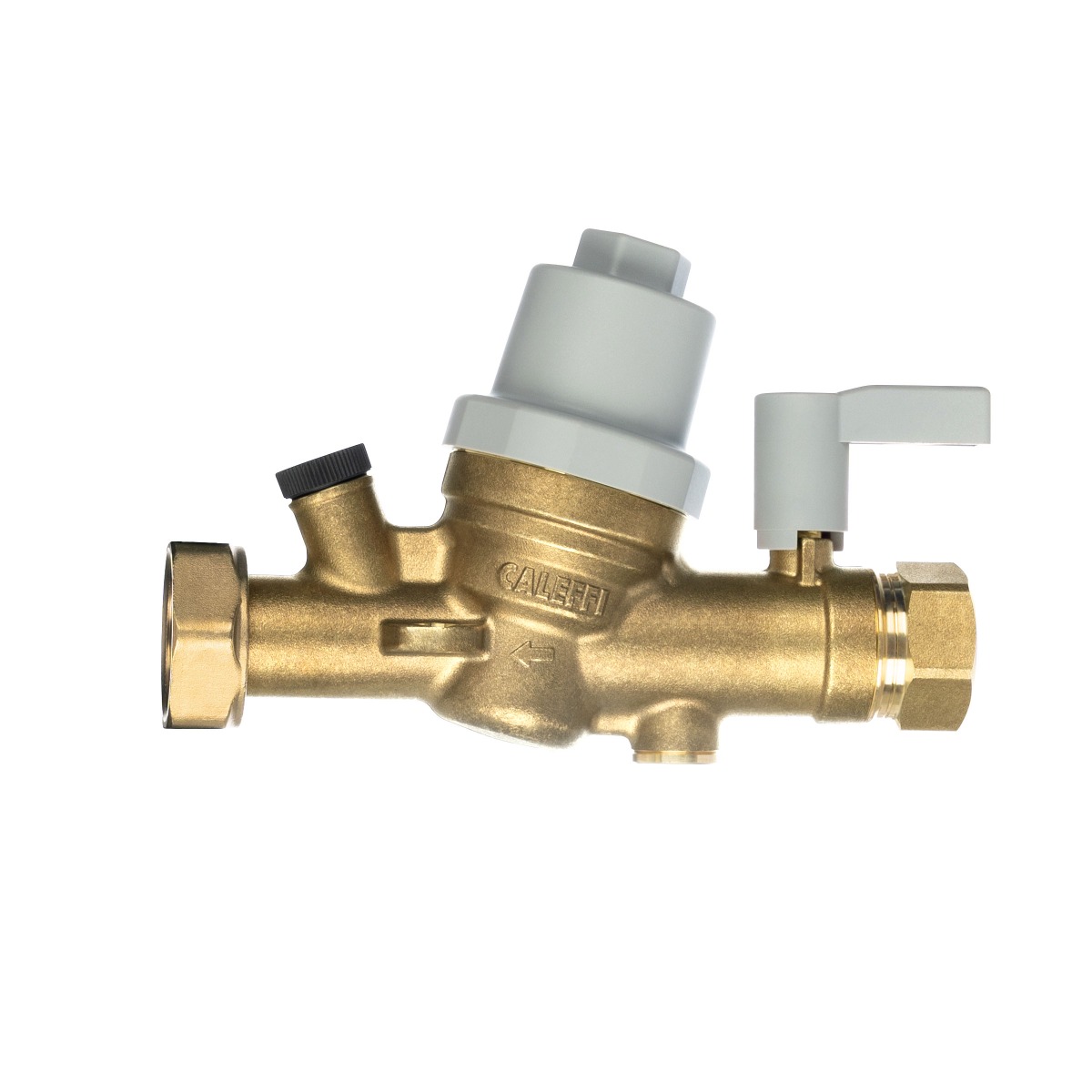

ALTECNIC APARTMENT CONTROL ASSEMBLY
The Altecnic Apartment Control Assembly offers a number of functions in one compact valve. Consisting of the Caleffi 533H PRV diaphragm, check-valve, water meter and isolating ball valve, the Altecnic Apartment Control Assembly allows the easy monitoring and control of water supply to a range of residential and commercial developments.
- Available in 5 different configurations including 3 options of water meter
- In-built fixing point allows for easy installation, saving time and cost of other fixings
- Insulation cover features labelling area for easy identification
- Available with water meter with MBUS connectivity, allowing for remote monitoring of water usage
- Comes supplied with PRV cartridge cover
- Self contained cartridge
SPECIFICATION
โ Combined isolating ball valve, pressure reducing cartridge and check valve
โ Compact space saving design
โ ยผห port for pressure gauge

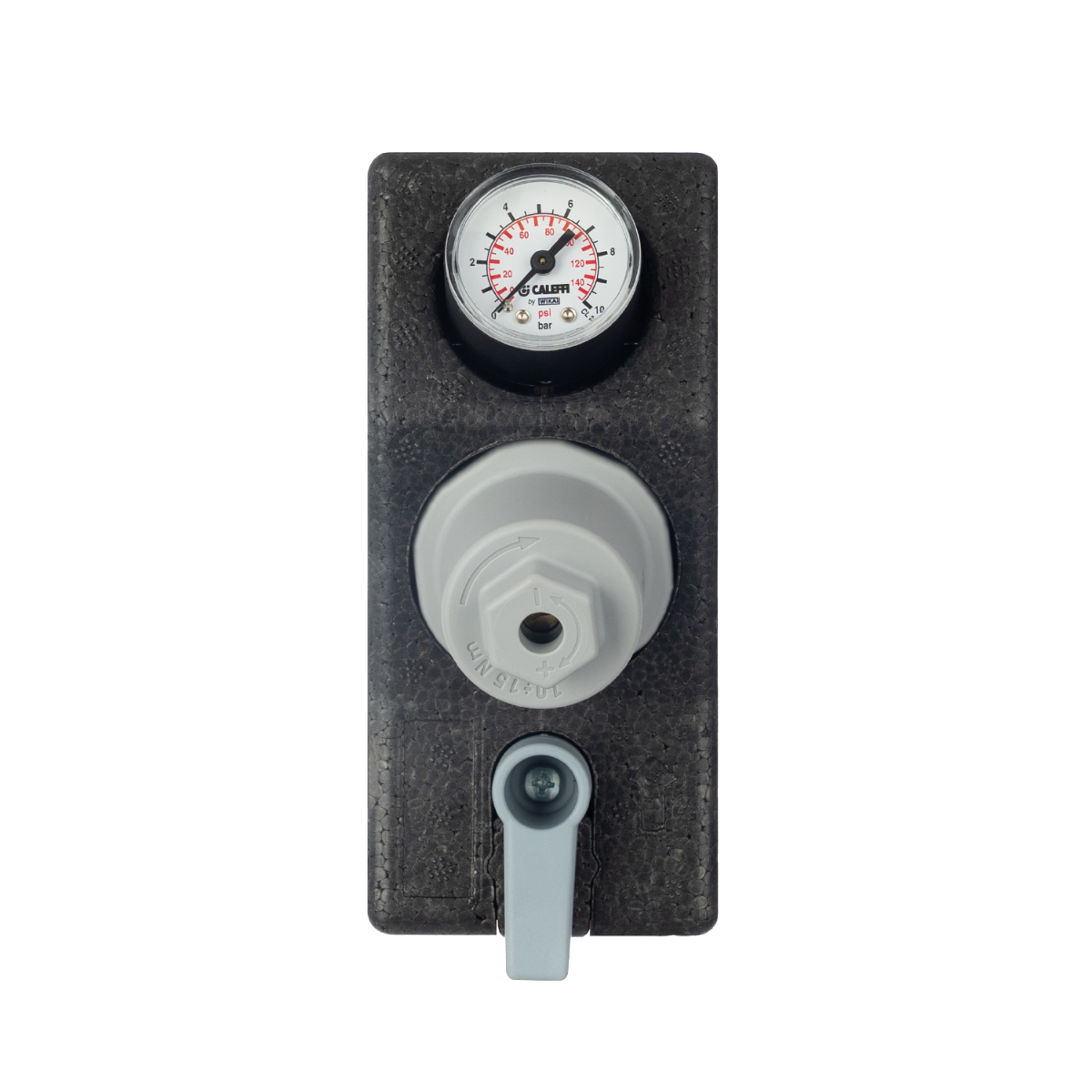

โ Dedicated insulation jacket
โ Matrix solution with optional water meters class A or class D metering
โ MBUS compatibility** (some models)
โ Ideal for multi-occupancy buildings
โ PRV cartridge certified to EN 1567
โ Max inlet pressure: 10 bar
โ Max temperature: 85ยฐC
โ PRV Adjustment Range: 1-6 bar
Technical Data Sheet
- 133-5021 Apartment Control Assembly Class D Data Sheet
- 133-5011/2 Apartment Control Assembly MBus Data Sheet
- 133-5001/2 Apartment Control Assembly Data Sheet
- 133-5031 - 539050H Apartment Control Assembly Data Sheet
- 133-5001 & 2 Apartment Control Assembly Non-Pulsed Data Sheet
- 133-5011 & 12 Apartment Control Assembly MBus Data Sheet
- 133-5021 Apartment Control Assembly Class D Data Sheet
- 539 Apartment Control Assembly Monoblock Data Sheet
Product Images
Click to download
ALTECNIC APARTMENT CONTROL ASSEMBLY FAQs
There are no product specific FAQs currently available.
Please, view our general FAQs page to find the answer to your question.
