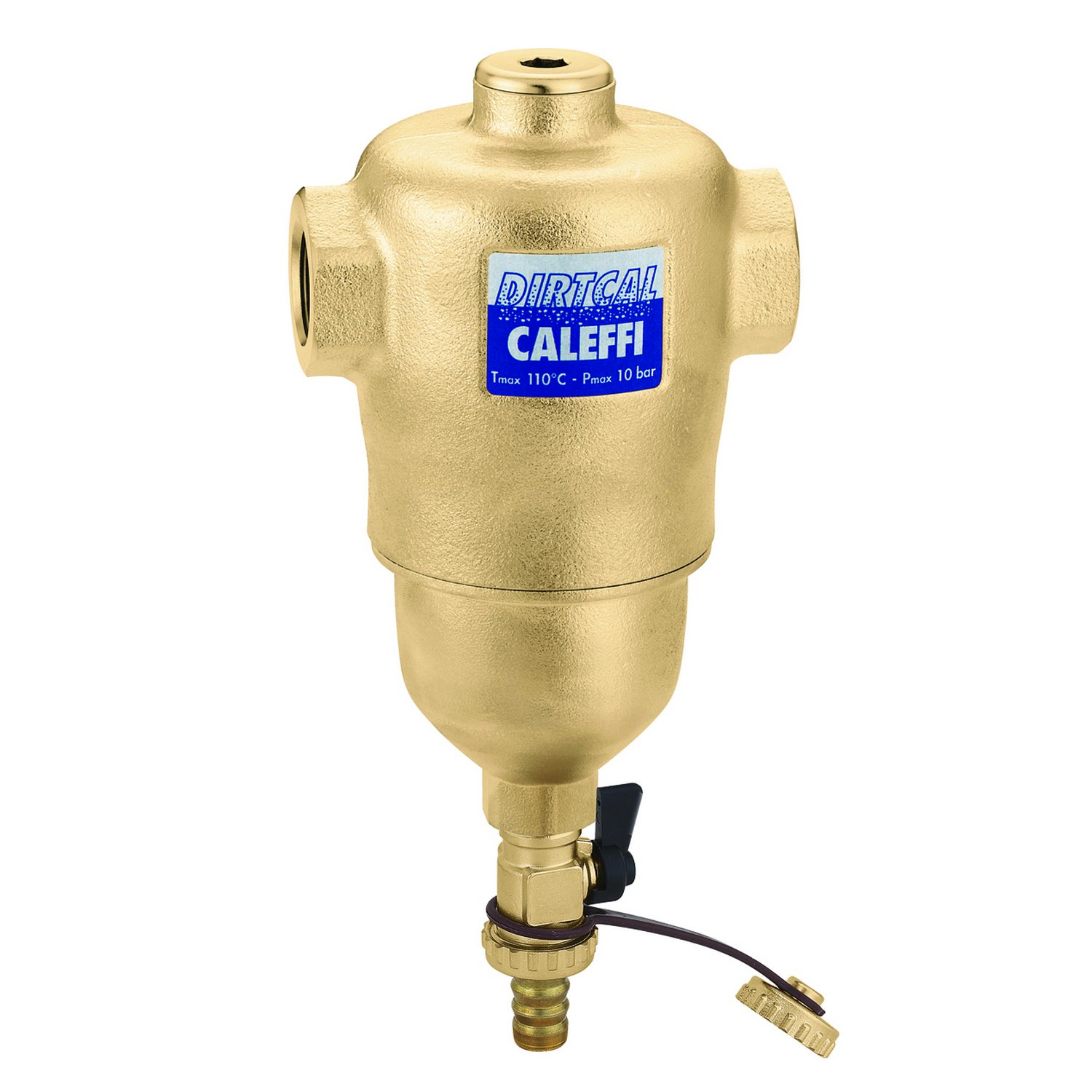

DIRTCAL BRASS DIRT SEPARATORS
● The Dirtcal range of dirt separators are designed for use on heating and air conditioning systems to provide an efficient method of dirt removal
● Max working pressure: 10 bar
● Temperature Range:
0 - 110°C (THREADED),
0 - 105°C (DN50 - DN100),
0 - 100°C (DN125 - DN150)
● Max percentage of glycol: 50%
| Reference | Name | Size | Connections | Insulation | Orientation | Body |
|---|---|---|---|---|---|---|
| 546205 | DIRTCAL® - Dirt separator | ¾″ | F X F BSP | No | Horizontal | Brass |
| 546206 | DIRTCAL® - Dirt separator | 1″ | F X F BSP | No | Horizontal | Brass |
| 546207 | DIRTCAL® - Dirt separator | 1¼″ | F X F BSP | No | Horizontal | Brass |
| 546208 | DIRTCAL® - Dirt separator | 1½″ | F X F BSP | No | Horizontal | Brass |
| 546209 | DIRTCAL® - Dirt separator | 2″ | F X F BSP | No | Horizontal | Brass |
| 546905 | DIRTCAL® - Dirt separator (vertical) | ¾″ | F X F BSP | No | Vertical | Brass |
| 546906 | DIRTCAL® - Dirt separator (vertical) | 1″ | F X F BSP | No | Vertical | Brass |
| 546902 | DIRTCAL® - Dirt separator (vertical with compression ends) | 22mm | Compression | No | Vertical | Brass |
| 546550 | DIRTCAL® - Dirt separator (flanged, including insulation) | DN50 | Flanged PN16 | Yes | Horizontal | Epoxy resin coated steel |
| 546560 | DIRTCAL® - Dirt separator (flanged, including insulation) | DN65 | Flanged PN16 | Yes | Horizontal | Epoxy resin coated steel |
| 546580 | DIRTCAL® - Dirt separator (flanged, including insulation) | DN80 | Flanged PN16 | Yes | Horizontal | Epoxy resin coated steel |
| 546510 | DIRTCAL® - Dirt separator (flanged, including insulation) | DN100 | Flanged PN16 | Yes | Horizontal | Epoxy resin coated steel |
| 546512 | DIRTCAL® - Dirt separator (flanged, including insulation) | DN125 | Flanged PN16 | Yes | Horizontal | Epoxy resin coated steel |
| 546515 | DIRTCAL® - Dirt separator (flanged, including insulation) | DN150 | Flanged PN16 | Yes | Horizontal | Epoxy resin coated steel |
Technical Downloads
Product Images
Click to download
DIRTCAL BRASS DIRT SEPARATORS FAQs
There are no product specific FAQs currently available.
Please, view our general FAQs page to find the answer to your question.
